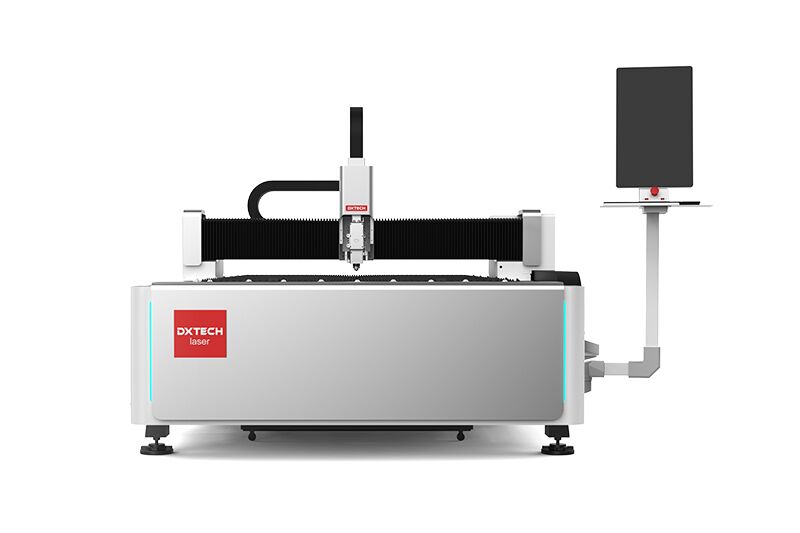

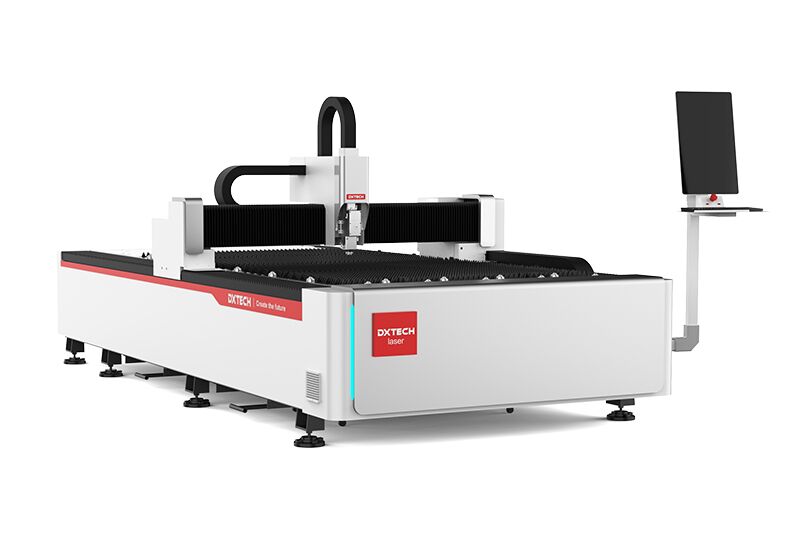

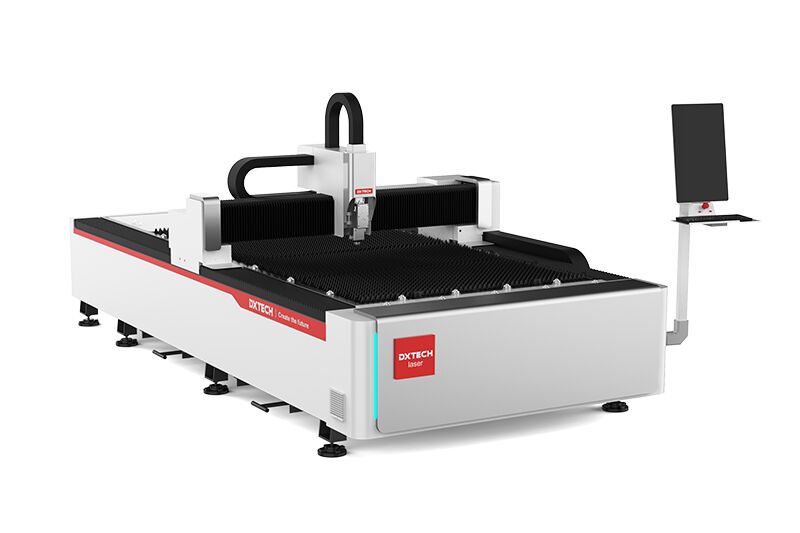

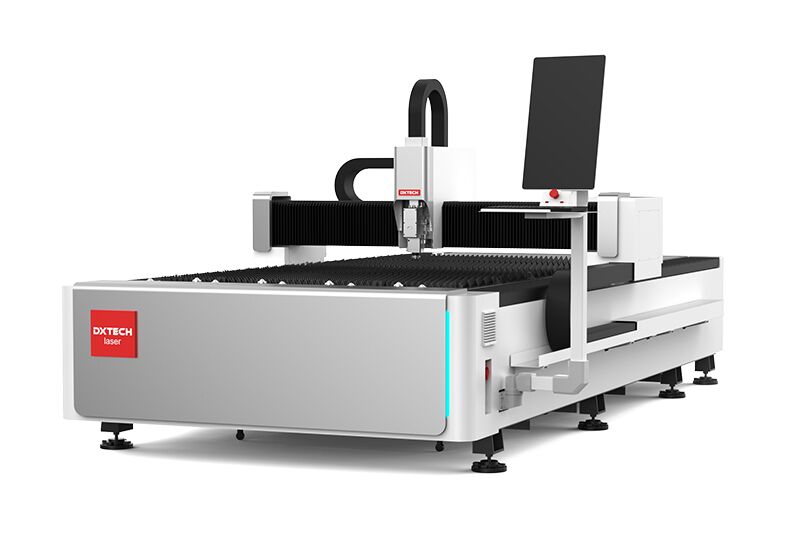

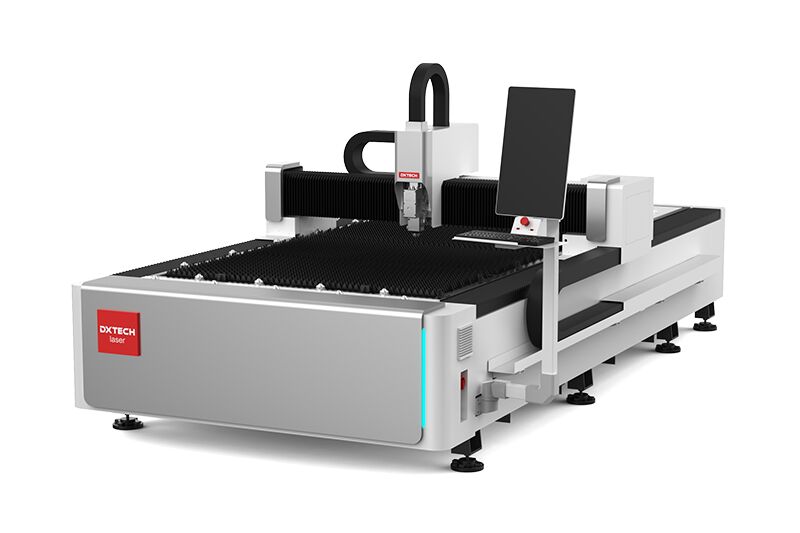

DXTECH FL Series Laser Cutting Machine is a Metal Laser Cutting Machine Mainly Applicable to and Commonly Used in Advertising Industry. The Control Cabinet Of This Machine is Placed in The Machine, Which Saves Space and is Suitable for Many Small and Medium-Sized Enterprises.
Video
Advantages
- Simple operating system, to realize rapid cutting on the shape what you want on the metal material, like Steel, Iron, Aluminum.
- Aviation aluminum alloy beam to ensure the running speed is up to 150m/min.
- World-class components like guide rails and racks to guarantee the cutting accuracy.
- The strong iron flatbed to keep the machine for 20 years without distortion.
- When considering sheet metal laser cutting prices, laser cutting has a higher quality cutting edge, it saves money and time cost.
Features
The economical fiber laser cutting machine for metal has many advantages, such as high processing quality, low procurement cost, simple maintenance, convenient utilization, and a wide range of applications. Therefore, this economical fiber laser cutting machine is increasingly popular both at home and abroad. This type of laser cutting machine can process most metal materials, such as stainless steel, carbon steel, galvanized sheet. It finds wide applications in sheet metal processing, lighting, kitchenware, decorative materials, cabinets, and other industries.
DXTECH Service
We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.
Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
Components of Fiber Laser Cutting machine
Intelligent focusing laser head
1) Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
2) Chasing aperture: through the 35 mm aperture, the interference of stray light is effectively reduced.
3) Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel plate welding bed
Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Aviation aluminum beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Weihong LS1500/LS3000 Laser Cutting Control System
Weihong laser cutting control system is a software for plane laser cutting. It supports AI, DXF, PLT and international standard G codes generated by Mater Cam, Type3, Wentai, etc.
Except common editing and typesetting functions, it has unique processing sequence browsing and powerful material database to load the specification directly. Besides, operators can control the system through wireless handheld box and Ethernet conveniently.
The Past Work
We provide free proofing service. Welcome to consult.
FAQ
stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.
Protective lenses, nozzles, ceramic rings.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
