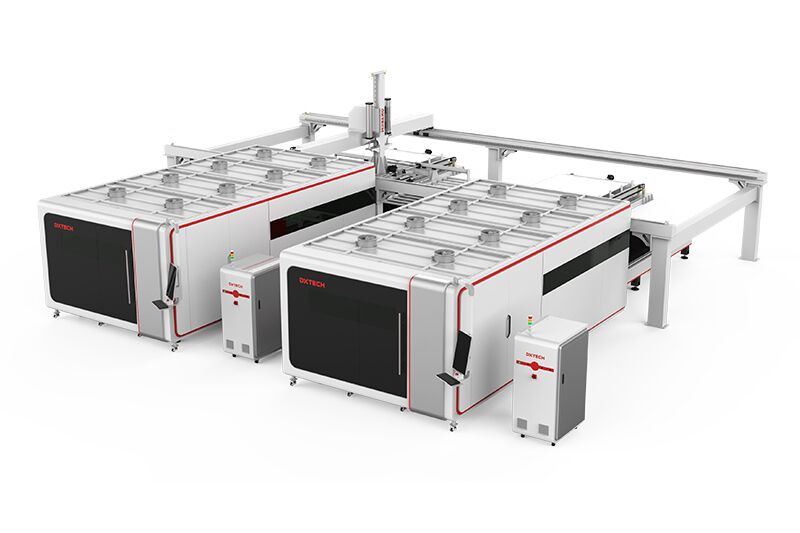

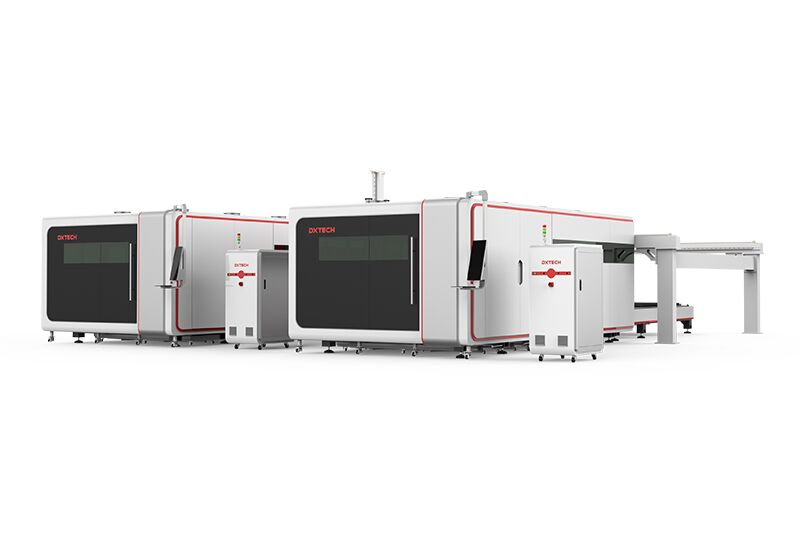

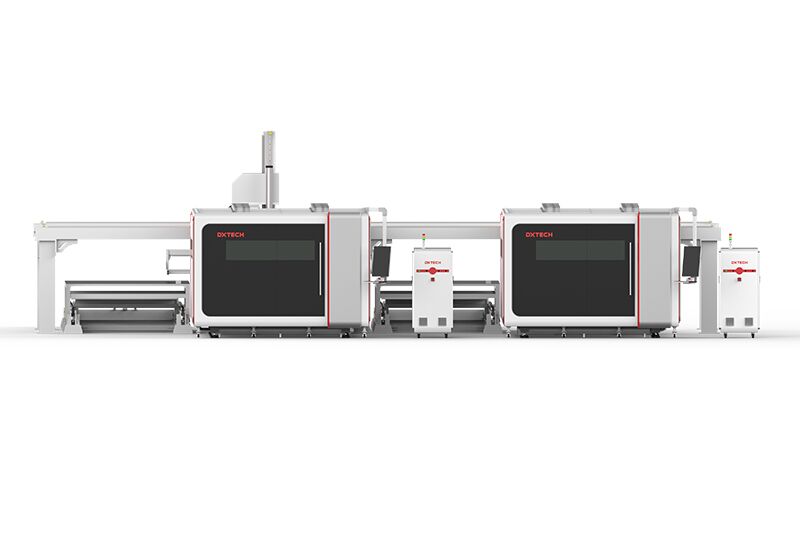

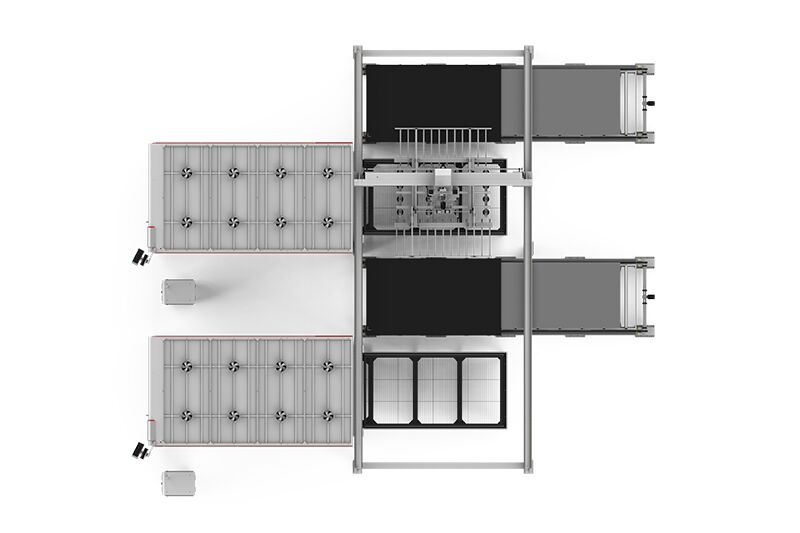

MAT-Series Automatic Loading and Unloading Device For Two Laser Cutting Machine

Features

This loading and unloading machine can realize the fully automatic processing of medium and thin metal plates. Laser cutting centralized control system, Two-machine iterconnetion mode is adopted to realize utral high speed material feeding,cutting, and unloading. unified allocation and control of processing tasks, stable operation, and external real-time feedback Processing progress.

Advantages

Higher Intelligence: it can accurately measure the metal sheet thickness. And then it place them on different pallets according to their different thicknesses.
Adopting semiconductor modular and redundancy design, without any optical glass in resonant cavity and without start time, so it is in high stability and doesn’t need adjusting and maintaining, which saves the costs and time. In this point, the traditional laser is not comparable.
Low cost: the sheet metal is automatically loaded on the exchange platform, and the finished products are stacked on the pallet. This automatic method will minimize the work intensity and save labor costs.
Higher efficiency: it can serve multiple cutting machines at the same time, making production more efficient. With this advantage, the automatic loading and unloading system will save non-productive duration and lower the energy consumption.
High precision: it is one of the most popular automatic loading and unloading system of our machine

DXTECH Service

We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.

Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.

We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.

Inquire now

Components of Metal Sheet And Tube Fiber Laser Cutter

Intelligent focusing laser head

1) Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
2) Chasing aperture: through the 35 mm aperture, the interference of stray light is effectively reduced.
3) Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.

Thick-walled carbon steel plate welding bed

Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.

Aviation aluminum beam

1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.

Weihong LS1500/LS3000 Laser Cutting Control System

Weihong laser cutting control system is a software for plane laser cutting. It supports AI, DXF, PLT and international standard G codes generated by Mater Cam, Type3, Wentai, etc.
Except common editing and typesetting functions, it has unique processing sequence browsing and powerful material database to load the specification directly. Besides, operators can control the system through wireless handheld box and Ethernet conveniently.

Inquire now

Feedback from Customers All Over The World

Argentina customer

This metal laser cutting machine is very safe and eye-protecting, with fast cutting speed, high Cutting precision，long service life, and high cost performance. Using it increases the processing efficiency of our workshop by 30%, saving US manpower and time. I will buy again.

Turkish customer

DXTECH is the most experienced fiber laser cutting machine company in China, the after-sales service is perfect, helpful and friendly, they will give you a choice that suits your budget. I will work with them again.

Mongolian Customer

I’m otgonbayr, from Mongolia.We have been using DXTECH laser cutting machine for two years.The machine has very good quality and the service is also perfect.Today we visit the production factory, which is very large,professional and powerful. The staff are also very professional and patiently answer our questions. DXTECH is definitely a good choice.

Italian customer

We fully understand the strength of DXTEXH, they care about the interests of customers, and patiently answer our questions. They will provide online and offline guidance until you resolve the issue. Our cooperation this time is very pleasant, and the quality of the cutting machine is also very good. After using it, the efficiency of our factory has increased by 40%, we will cooperate again!

Inquire now

The Past Work

We provide free proofing service. Welcome to consult.

Inquire now

FAQ

Common processing materials for laser cutting machines?

stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.

What are the core components of laser cutting machine?

Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.

What are the common fiber laser cutting machine consumables?

Protective lenses, nozzles, ceramic rings.

What factors affect the accuracy of fiber laser cutting machine?

The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
