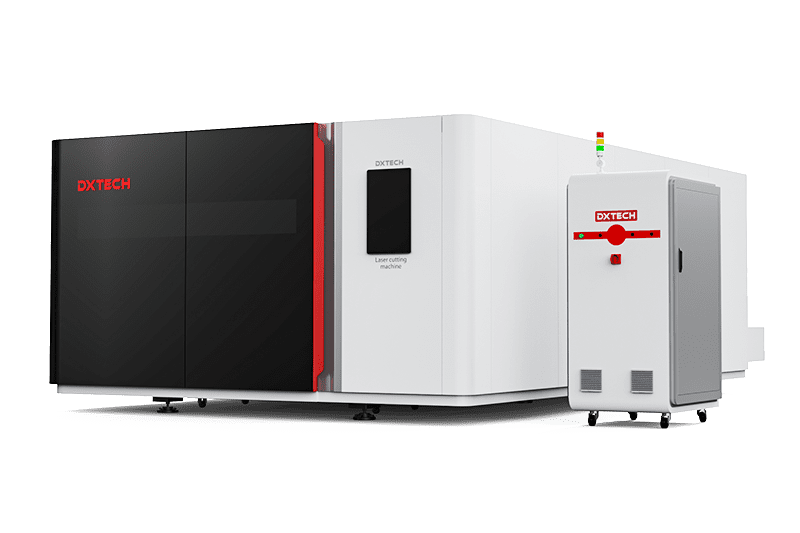

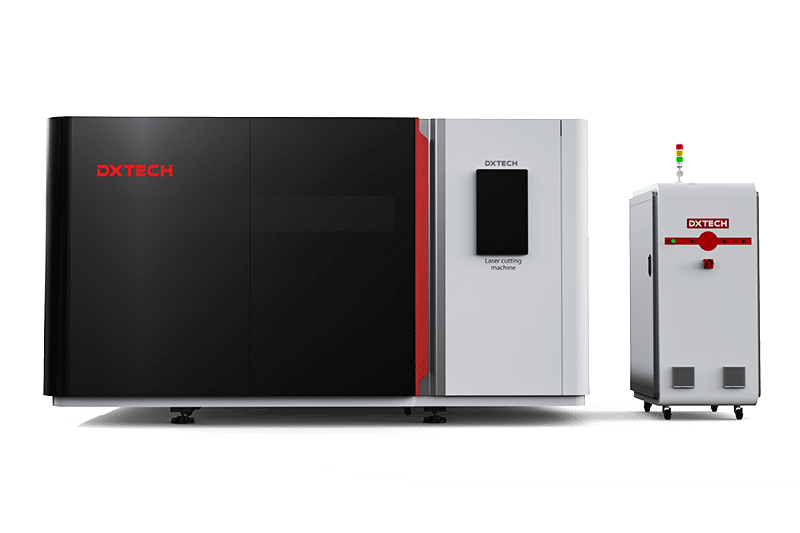

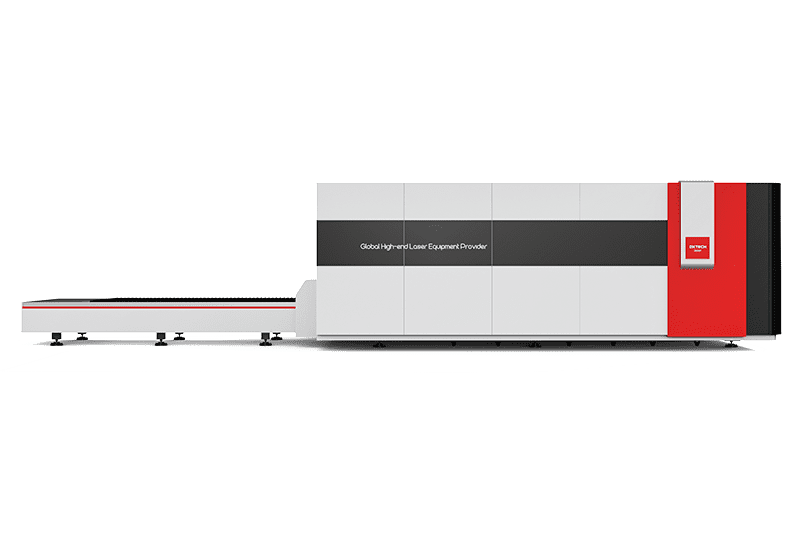

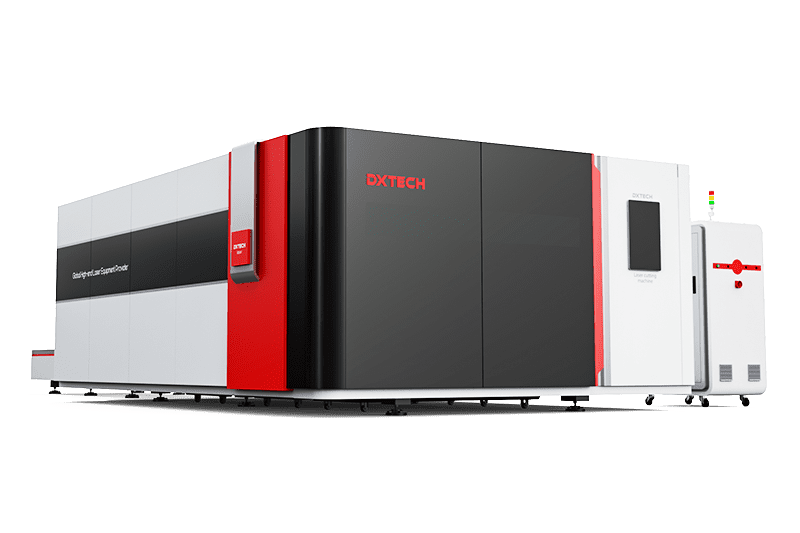

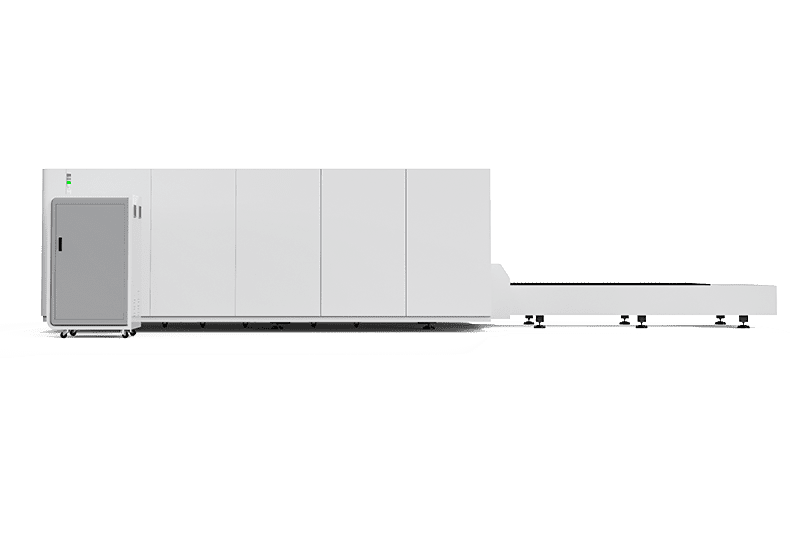

The full-cover fiber laser cutting machine adopts a fully-enclosed laser protective cover, equipped with a special laser protective glass observation window, a scientific fume recovery and purification processing system and a standard exchange platform. The enclosure protects the operator from sparks and slag splashes during production and maintains the cleanliness of the work area. Swapping pallets allows for quick and easy loading and unloading of metal sheets with high processing efficiency. Our full hood fiber laser cutter with exchange table is the first choice for modern metal fabricators.
Video
Advantages
- With the fully enclosed protective cover, the smoke and dust can be prevented, which is more environmentally friendly.
- With the 15s exchange platform adopted, this laser cutter can achieve fast loading and unloading, which greatly improves the processing efficiency.
- With the lightweight aviation aluminum beam adopted, the machine greatly improves the moving speed, and the processing precision is guaranteed.
- Simple operating system, to realize rapid cutting on the shape what you want on the metal material, like carbon steel ,stainless steel, cooper, aluminum, and galvanized sheet.
Components of metal sheet and tube fiber laser cutter
Intelligent focusing laser head
1) Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
2) Chasing aperture: through the 35 mm aperture, the interference of stray light is effectively reduced.
3) Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel plate welding bed
Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Aviation aluminum beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Weihong LS1500/LS3000 Laser Cutting Control System
Weihong laser cutting control system is a software for plane laser cutting. It supports AI, DXF, PLT and international standard G codes generated by Mater Cam, Type3, Wentai, etc.
Except common editing and typesetting functions, it has unique processing sequence browsing and powerful material database to load the specification directly. Besides, operators can control the system through wireless handheld box and Ethernet conveniently.
The Past Work
FAQ
stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled plate, copper, silver, gold, titanium and other metal plates and pipes.
Fiber laser, stepper motor, servo motor, bed, laser head, water chiller, control system, etc.
Protective lenses, nozzles, ceramic rings.
The shape of the laser beam, the width of the slit, the accuracy of the table, and the material of the work piece.
