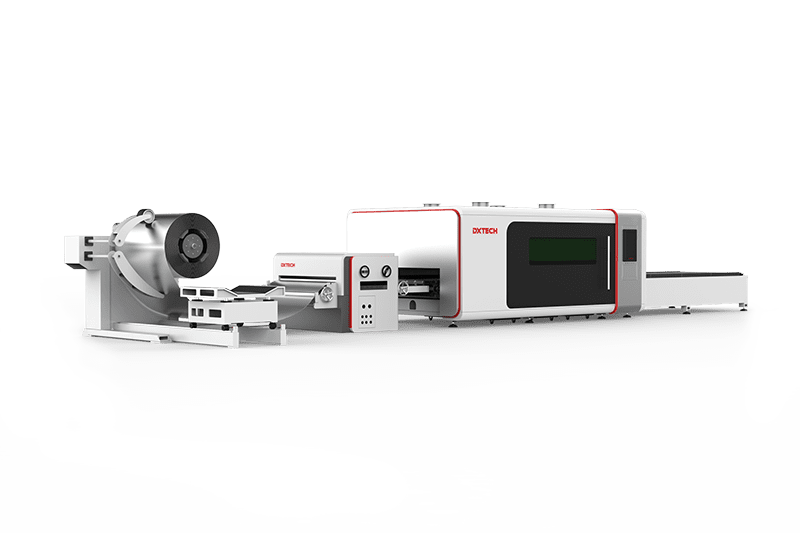

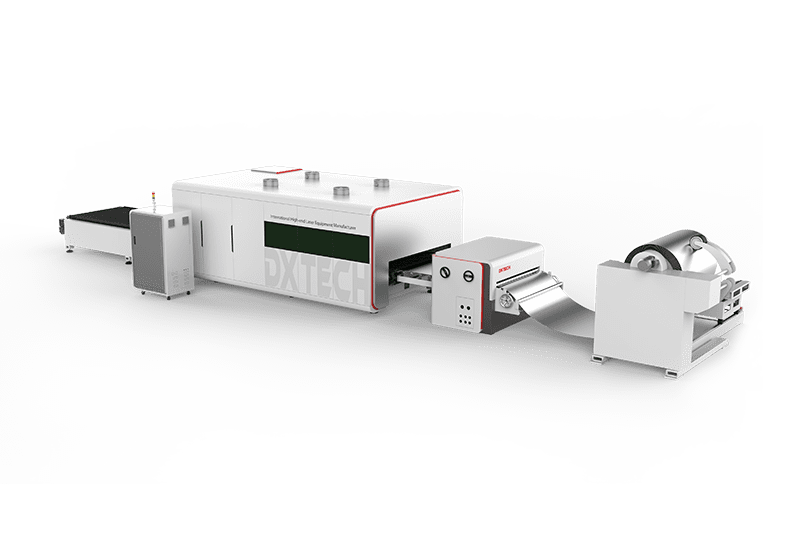

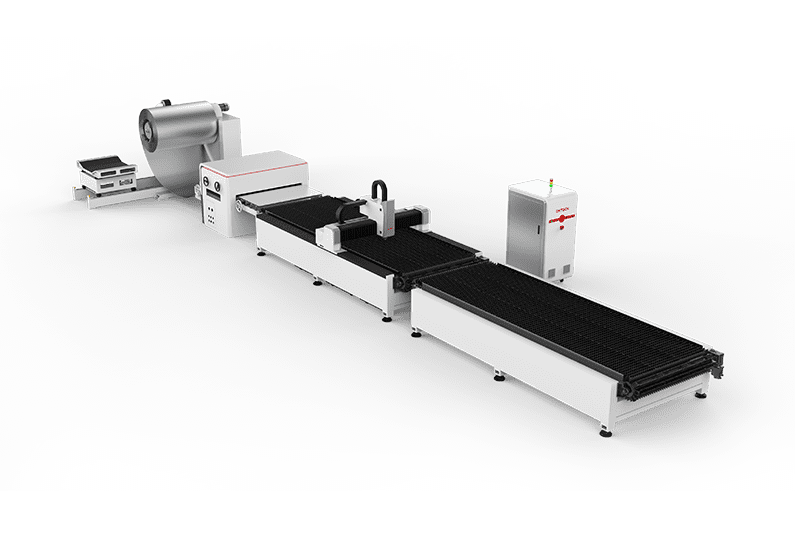

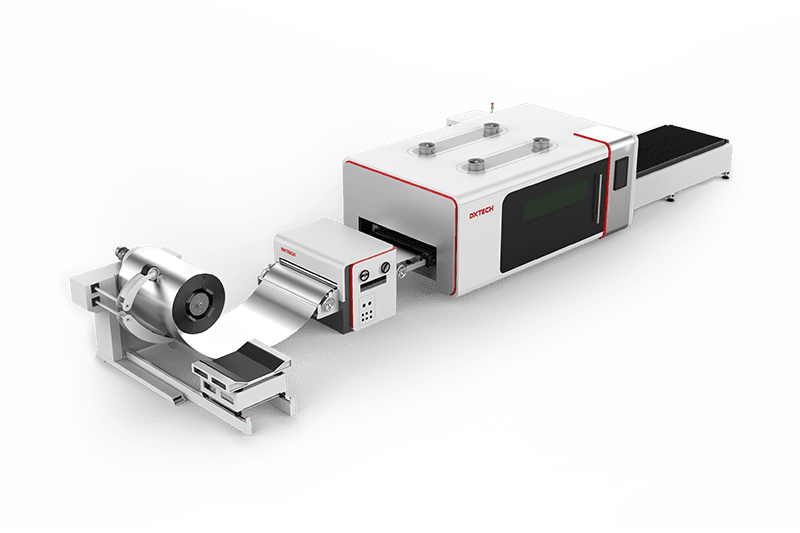

SC- 2kw new automatic coil fed feeding fiber laser cutting machine for sale in Thailand has a high load-bearing frame, stable operation, steady feeding and flexible operation. It has high power, which is suitable for cutting some thick metal materials, such as stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, galvanized steel, copper, etc. It is widely used in the manufacture of agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment.
SC- 2kw new automatic coil fed feeding fiber laser cutting machine for sale in Thailand Advantages
1. The weight of the loaded material can reach 20T, breaking through the feeding limit of ordinary 3T, which is 6 times the efficiency of ordinary feeding equipment.
2. Stronger stress relief: After the coil is uncoiled, the sheet is leveled by a leveling machine, which eliminates the stress of the sheet during the leveling process. The result is a flatter sheet and a better cutting experience.
3. High-precision transmission structure: Ultra-precision transmission system is adopted, and the transmission accuracy of sheet metal is about ±0.5MM, which can ensure higher precision.
4. Fully automatic assembly line: from loading-uncoiling-leveling-cutting-unloading, the whole process is fully automated, which can realize zero waste of coils and improve the utilization efficiency of plates.
5. Flexibility: The coil production line breaks through the limitation of the length of ordinary laser cutting, which is subversive in some fields.
SC- 2kw new automatic coil fed feeding fiber laser cutting machine for sale in Thailand video
SC- 2kw new automatic coil fed feeding fiber laser cutting machine for sale in Thailand SPECIFICATIONS
| Model | DXTECH-1530SC | DXTECH-1540SC | DXTECH-1560SC | DXTECH-2040SC | DXTECH-2060SC |
| Working area (mm) | 1515*3030 | 1515*4040 | 1515*6060 | 2020*4040 | 2020*6050 |
| Max. acceleration | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G |
| Worktable | Rolling blade | Rolling blade | Rolling blade | Rolling blade | Rolling blade |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Repositioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Laser power | 1kW – 2kW | 1kW – 2kW | 1kW – 2kW | 1kW – 2kW | 1kW – 2kW |
| Coil sheet thickness | 0.5-3mm | 0.5-3mm | 0.5-3mm | 0.5-3mm | 0.5-3mm |
| Machine bed | Plate welded bed | Plate welded bed | Plate welded bed | Plate welded bed | Plate welded bed |
| Laser | Multiple options | Multiple options | Multiple options | Multiple options | Multiple options |
| Focusing method | Auto/manual | Auto/manual | Auto/manual | Auto/manual | Auto/manual |
| X/Y-axis max. linkage speed | 140m/min | 140m/min | 140m/min | 140m/min | 140m/min |
| Leveling speed | ≤20m/min | ≤20m/min | ≤20m/min | ≤20m/min | ≤20m/min |
| Coil weight | ≤15t | ≤15t | ≤15t | ≤15t | ≤15t |
DXTECH service
We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.
Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
SC- 2kw new automatic coil fed feeding fiber laser cutting machine for sale in Thailand samples
We provide free proofing service. Welcome to consult.
SC- 2kw new automatic coil fed feeding fiber laser cutting machine for sale in Thailand Cutting parameter map
Customer Reviews
Components of Fiber Laser Cutting machine
Intelligent focusing laser head
1) Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
2) Chasing aperture: through the 35 mm aperture, the interference of stray light is effectively reduced.
3) Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel plate welding bed
Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Aviation aluminum beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Weihong LS1500/LS3000 Laser Cutting Control System
Weihong laser cutting control system is a software for plane laser cutting. It supports AI, DXF, PLT and international standard G codes generated by Mater Cam, Type3, Wentai, etc.
Except common editing and typesetting functions, it has unique processing sequence browsing and powerful material database to load the specification directly. Besides, operators can control the system through wireless handheld box and Ethernet conveniently.
