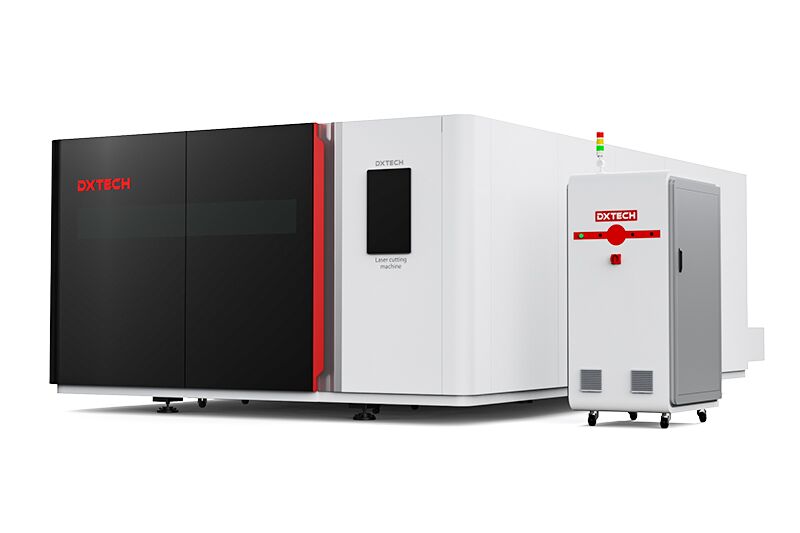

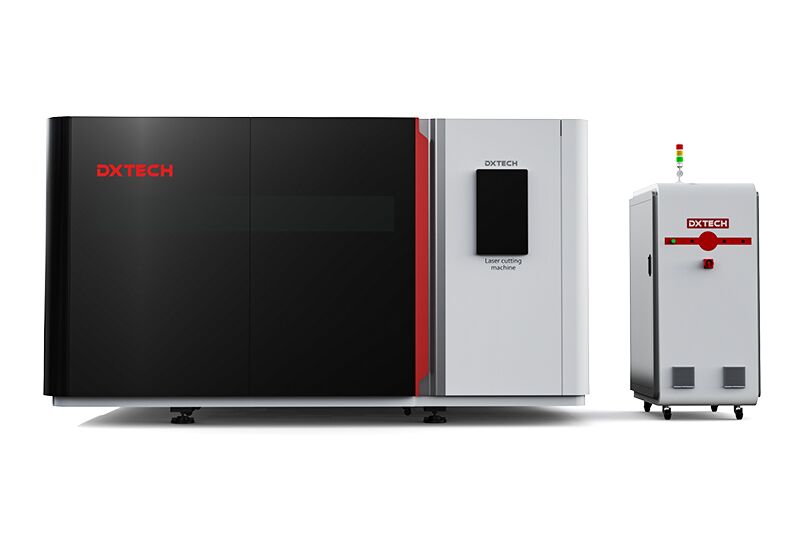

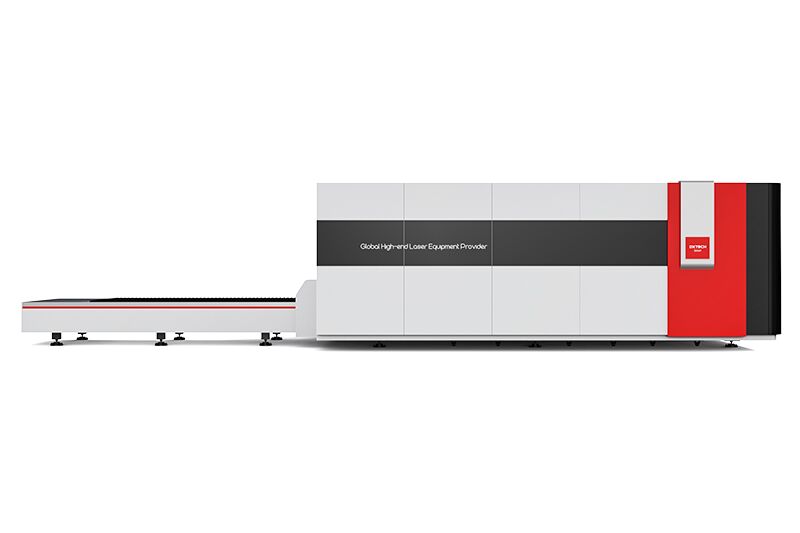

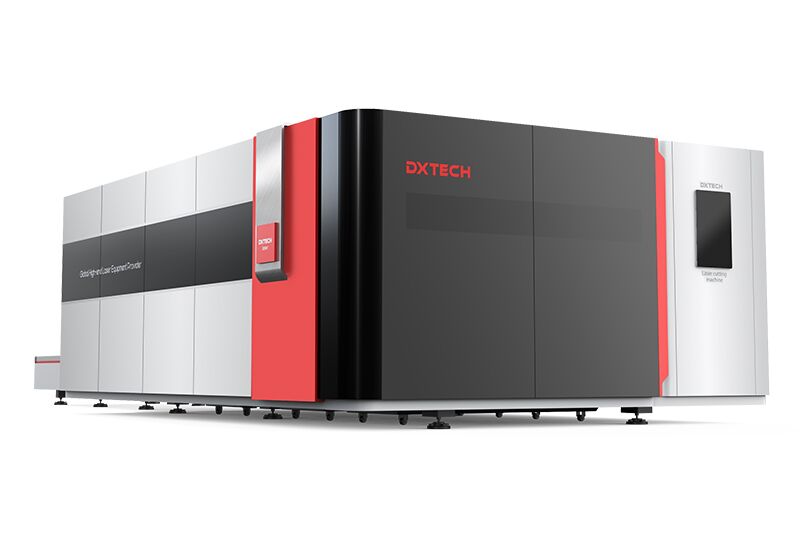

Full cover exchange table fiber laser cutting machine for 3mm stainless steel for sale in UK is used to cut sheet metal with thicknesses of 0.5mm – 25mm, such as stainless steel, aluminum alloy, brass, and other materials. And you can use this machine in many fields, such as the automotive industry, sheet metal industry, kitchen cabinet industry, advertising industry, etc.
Full cover exchange table fiber laser cutting machine for 3mm stainless steel for sale in UK Advantages
1. Stable and reliable optical system and control system.
2. Imported original fiber laser generator with stable performance and a service life of more than 100,000 hours.
3. High cutting quality, high cutting efficiency and smooth cutting edge. The cutting speed can reach 60m/min.
4. A full set of protective covers ensures the safety of operators and reduces air pollution in the factory.
5. Double gear transmission system, high working precision. Imported guide rails and ball screws ensure the smooth working process of the machine.
6. High-power full-coverage fiber metal laser cutting machine is specially used for cutting 0.4-25mm carbon steel; 0.4-18mm stainless steel, galvanized steel, electrolytic plate, silicon steel; 0.4-16mm aluminum alloy; 0.4-10mm brass, copper and other thin metals.
7. Cast aluminum beam structure, light weight, fast response and good dynamic performance.
8. Special cutting software, cutting technology experts, data saving and calling function.
9. Precision rack and pinion transmission reducer, high-precision, high-response, high-precision servo motor.
10. High-precision laser cutting head, imported optical lens, fine focus, easy adjustment, perfect.
Full cover exchange table fiber laser cutting machine for 3mm stainless steel for sale in UK video
Full cover exchange table fiber laser cutting machine for 3mm stainless steel for sale in UK SPECIFICATIONS
Model | DXTECH-1530SP | DXTECH-1540SP | DXTECH-2040SP | DXTECH-2560SP |
Working area (mm) | 1500*3000mm | 1500*4000mm | 2000*4000mm | 2600*6000mm |
Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
Maximum speed | 140M/min | 140M/min | 140M/min | 140M/min |
Max. acceleration | 1.5G | 1.5G | 1.5G | 1.5G |
Laser power | 1kw – 6kw | 1kw – 6kw | 1kw – 6kw | 1kw – 6kw |
Laser | Multiple options | Multiple options | Multiple options | Multiple options |
X-axis motor power | 1300W | 1300W | 1300W | 1300W |
Y-axis motor power | 1800W | 1800W | 1800W | 1800W |
Z-axis motor power | 750W | 750W | 750W | 750W |
DXTECH service
We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.
Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
Full cover exchange table fiber laser cutting machine for 3mm stainless steel for sale in UK samples
We provide free proofing service. Welcome to consult.
Full cover exchange table fiber laser cutting machine for 3mm stainless steel for sale in UK Cutting parameter map
Customer Reviews
Components of Fiber Laser Cutting machine
Intelligent focusing laser head
1) Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
2) Chasing aperture: through the 35 mm aperture, the interference of stray light is effectively reduced.
3) Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.

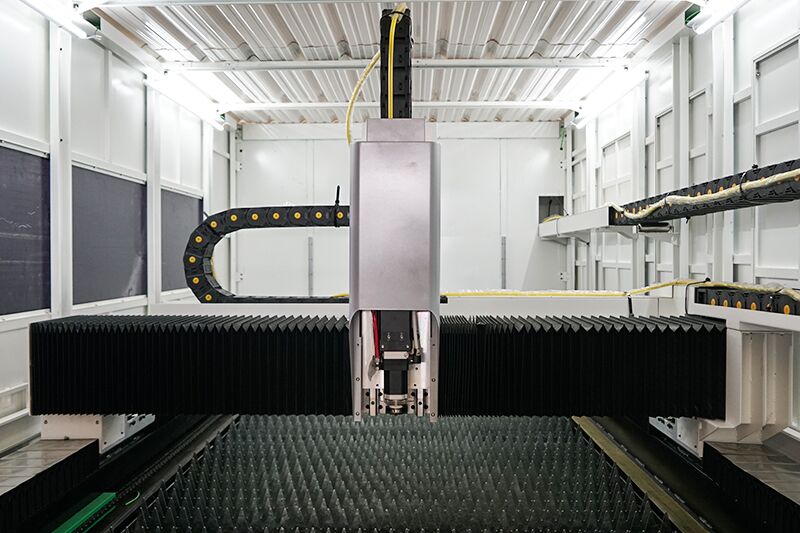

Thick-walled carbon steel plate welding bed
Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Aviation aluminum beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Weihong LS1500/LS3000 Laser Cutting Control System
Weihong laser cutting control system is a software for plane laser cutting. It supports AI, DXF, PLT and international standard G codes generated by Mater Cam, Type3, Wentai, etc.
Except common editing and typesetting functions, it has unique processing sequence browsing and powerful material database to load the specification directly. Besides, operators can control the system through wireless handheld box and Ethernet conveniently.
