Cutting Material: Metal And Non-Metal
Power: Fiber Laser Part:1-2KW Co2 Laser Part:75-300W
WorKing Table: 1310*2520/1515*3030mm
With Three Working Tables for Different Kinds of Materials
Auto Focus Laser Head
Integrated Cutting System Used To Meet Various Needs
Co2+Fiber 2 in1 laser cutting machine for metal and nonmetal for sale in Argentina Advantages
1. It can not only cut metal sheets, but also can cut non-metal profiles. One machine is multi-purpose, saving the cost of buying two sets, saving space and bringing higher production efficiency.
2. The software automatically adjusts the focusing mirror and controls the vertical height, so as to realize the perforation cutting of plates with different thicknesses. The adjustable range is +-10, and the precision is 0.01mm. It is suitable for plates with different thicknesses from 0-20mm.
3. The collimating lens and the focusing lens are double water-cooled, which reduces the temperature of the cutting head and improves the life of the cutting head.
4. Excellent performance, stability and precision, greatly improving stability. Achieve higher speed and ensure high-precision and high-speed operation. Strong reliability, vibration control, strengthen the control of vibration.
5. Intelligent cutting system Easy to learn and use, convenient to debug, rich in functions, built-in multiple cutting functions, one-button activation, easy to learn, quick to use, and quickly transformed into productivity.
Co2+Fiber 2 in1 laser cutting machine for metal and nonmetal for sale in Argentina video
Co2+Fiber 2 in1 laser cutting machine for metal and nonmetal for sale in Argentina SPECIFICATIONS
| Model | DXTECH-1325CF | DXTECH-1530CF |
| Working area | 1313*2525mm | 1515*3030mm |
| Positioning accuracy | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm |
| Max. acceleration | 1.5G | 1.5G |
| Fiber Laser power | 1kW – 2kW | 1kW – 2kW |
| Co2 Laser power | 75w-300w | 75w-300w |
| Laser | Multiple options | Multiple options |
| Focusing method | Auto/manual | Auto/manual |
| Max. running speed | 140m/min | 140m/min |
DXTECH service
We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.
Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
Co2+Fiber 2 in1 laser cutting machine for metal and nonmetal for sale in Argentina samples
We provide free proofing service. Welcome to consult.
Co2+Fiber 2 in1 laser cutting machine for metal and nonmetal for sale in Argentina Factory strength
Customer Reviews
Components of Co2+Fiber 2 in1 laser cutting machine

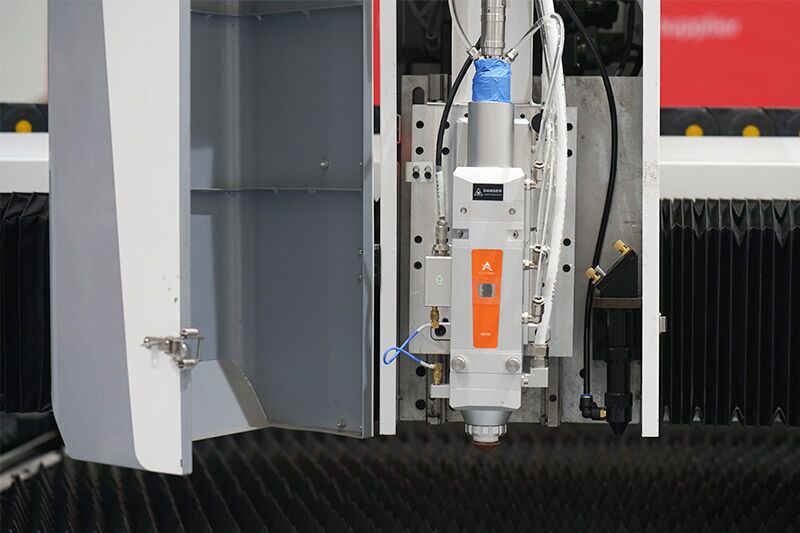

Intelligent focusing laser head
1) Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
2) Chasing aperture: through the 35 mm aperture, the interference of stray light is effectively reduced.
3) Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel plate welding bed
Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Aviation aluminum beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.

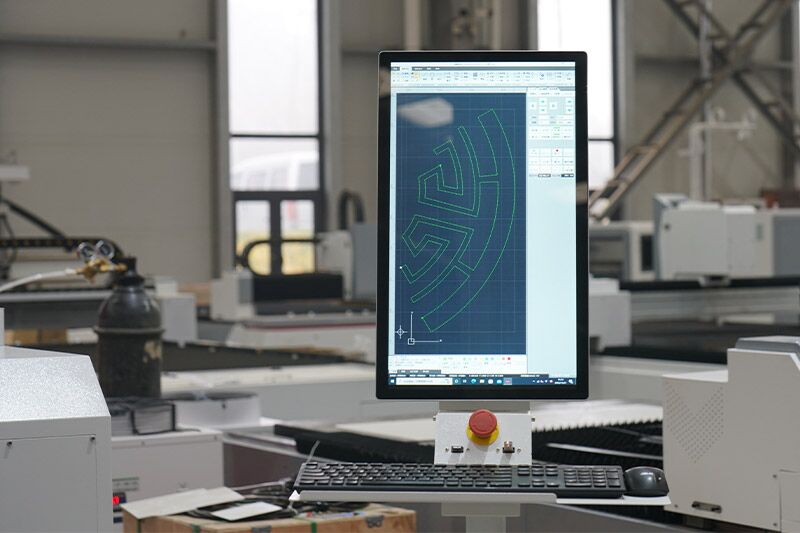

Weihong LS1500/LS3000 Laser Cutting Control System
Weihong laser cutting control system is a software for plane laser cutting. It supports AI, DXF, PLT and international standard G codes generated by Mater Cam, Type3, Wentai, etc.
Except common editing and typesetting functions, it has unique processing sequence browsing and powerful material database to load the specification directly. Besides, operators can control the system through wireless handheld box and Ethernet conveniently.
